Antenna/OMT Polarizer



Polarizer is based on truncated circular waveguide containing two rows of short circular posts.

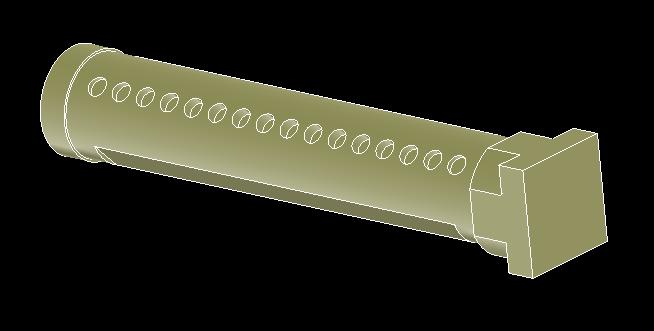

Figure: Internal surface plot of polarizer







Table: Performance Summary



Parameter

Value

BANDWIDTH, GHz

Rx

Tx



19.70-20.20

29.50-30.00

AXIAL RATIO, dB

   Tx

   Rx:



0.25

0.6

POLARIZATION

   POL:

   Rx/Tx:  Orthogonal



Circular

Orthogonal

INSERTION LOSS, dB

0.15 zinc

0.10 aluminum

PHYSICAL SIZE, mm

Length flange-to-flange

60

VSWR at OMT end:

1.17:1 (22 dB)

VSWR at Feed end:

1.17:1 (22 dB)

MATERIAL

aluminum/zinc

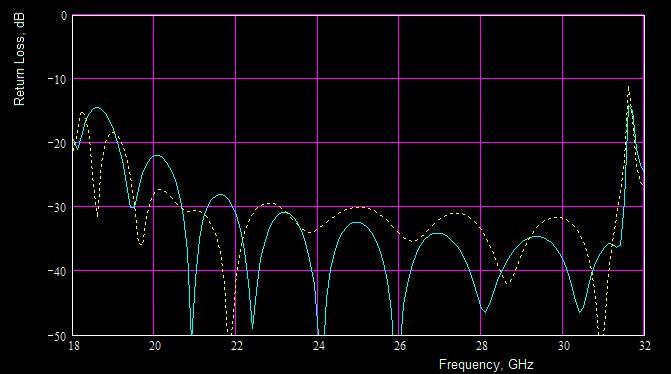

Figure 2: Frequency response (Return loss dB versus frequency GHz) of polarizer for two orthogonal incidental waves.
